Fire Rated Glass Partition
Integrating natural daylight, flexible design, and high – efficiency fire protection.
- Effectively blocks the spread of fire, smoke, and heat.
- Complies with fire safety regulations and building codes.
- Delays fire spread for up to 120 minutes.
- Bespoke designs seamlessly integrate into interior spaces.
- Enhances safety for occupants and property.
High – Specification Fire Rated Glass Partition Manufacturer in China
Our fire rated glass partitions, also known as fire resistant glass partitions or fire rated glass walls, are engineered for exceptional fire performance. They not only block the spread of flames, smoke, and heat but also provide flexible partitioning solutions for your workspaces or public areas.
Meeting stringent fire safety standards, they offer fire – resistance ratings ranging from 30 to 120 minutes, creating effective fire barriers within buildings. The system features a sleek and modern aesthetic, while the fire resistant glass maintains natural light transmission, keeping your interior spaces bright and open.
This fire rated partition system is ideal for locations requiring specific fire safety certifications or fire resistance, such as commercial office buildings, shopping centers, hotels, retail stores, school libraries, city halls, educational centers, medical facilities, and nursing homes. During a fire, the partitions create safe evacuation routes for personnel, buying critical time for fire response and effectively preventing significant loss of life and property damage.
Fire Rated Glass Partition Technical Parameters
You can review the material information and technical specifications for our fire rated glass wall systems. This includes details on base materials, customization options, and achievable fire resistance durations.
- Product Material: High – quality extruded steel + fire – resistant tempered glass
- Product Structure: The column is integrally rolled and formed from a 1.5mm galvanized steel plate, and the frame is integrally rolled and formed by CNC machining from 1.0 – 1.2mm galvanized steel plates
- Height: Up to 3200mm
- Partition Wall Thickness: 100/120mm
- Fire – resistant Glass Thickness: 6+6/8+8 double – layer fire – resistant glass or 10/12/25mm single – layer fire – resistant glass. (The type of fire – resistant glass and the thickness of the layers used depend on the specific temperature it needs to withstand.)
- Fire – resistance Time: 30/60/90/120 min
- Frame Surface Treatment: RAL powder – coating color / Anodizing options
- Frame Color: Black, white, grey, and can also be customized
- Door Type: Fire – resistant steel door or fireproof tempered glass door
After reviewing the technical information about our fire rated glass partitions, should you have any questions or require assistance, we are always available to help.
If you are planning to enhance the safety level of your interior space, or already have preliminary sketches or architectural drawings, please feel free to share them with us. Our team will draft conceptual plans, provide tailored solutions, and conduct cost estimates for you.
Benefits of Fire Rated Glass Partition
PRODEC fire rated glazed partitions seamlessly blend aesthetics with functionality, delivering both practical value and an enhanced experience for your interior spaces.
Enhanced fire safety
The steel frame of the fire-rated glass partition is precisely integrated with the fire-rated glass, providing your building with the highest level of fire protection.
Code compliance
Our fire rated glass partitions comply with your local building codes and regulations, ensuring safety requirements for different usage classifications.
Natural lighting
Fire glass partitions offer a bright and transparent appearance, providing unobstructed views both inside and out while allowing you to fully enjoy natural light.
Aesthetic appeal
Fire rated glass partitions feature clean, flowing lines as their defining characteristic, adding a contemporary touch and modern visual appeal to your interior space.
Acoustic performance
Opting for reinforced, sealed fire rated internal glass partitions can reduce noise by at least 43 decibels, creating a quieter, more focused work environment for you.
Early detection
Fire rated glass partition walls made of transparent glass offer the advantage of enabling early detection of fires, thereby providing occupants with more time for rescue and evacuation.
Durability
Fireproof glass partitions, constructed primarily from exceptionally wear-resistant galvanized steel and high-temperature, impact-resistant fire-rated glass, exemplify enduring durability.
Low maintenance
Fire rated glass partitions do not require excessive effort for routine cleaning and maintenance, but they must be inspected periodically for damage or malfunctions.

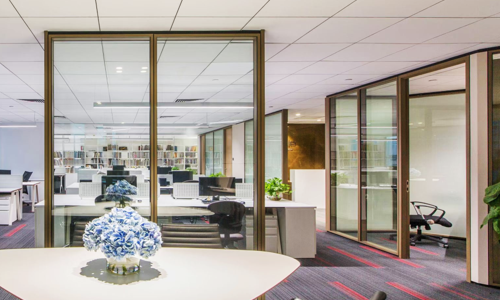

Offer Fire Rated Glass Partition Customized Services
We offer fire rated glass partitions in multiple models and configurations to meet your diverse fire resistance requirements. You can choose from single – pane or double – pane styles, with varying glass thicknesses and system structures to comply with different fire standards.
Additionally, our fire rated glass walls feature a wide selection of RAL-colored frames—including popular shades and custom colors—and can incorporate custom patterns on the glass surface. This versatility accommodates diverse interior design styles and application needs.

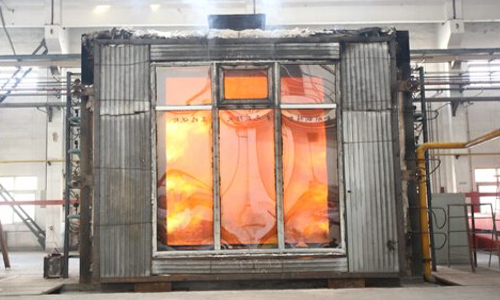

Fire Rated Glass Partitions Strictly Tested & Certified
Our fire-rated glass partition system is engineered from the outset to withstand fire. The fire resistance of its entire structure—including all components such as fire-rated glass, partition frames, door leaf assemblies, and fixed seals—has been rigorously tested and verified.
The entire testing process is conducted by a certified third-party testing agency. We subject the fire rated glass partitions to high-temperature and flame environments, simulating fire conditions to ensure compliance with essential fire safety standards.

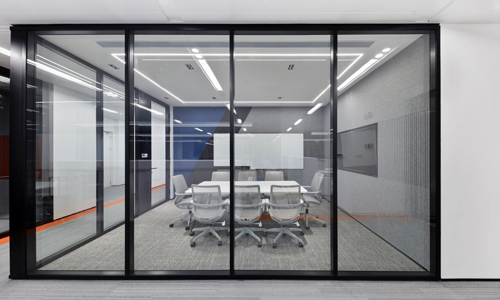

Fire – Resistant Glass Partitions Are Perfectly Suitable for Modern Offices
Fire rated office glass partitions offer full transparency while providing excellent sound insulation, making them particularly suitable for open-plan collaborative workspaces. They ensure uninterrupted focus on work tasks within each compartment.
Additionally, the ability to connect with natural light and outdoor views through clear glass can subtly enhance your sense of well-being and comfort, while also boosting morale, productivity, and overall wellness.
